RF Designer™

The RF Designer™ RF/microwave design app is a highly affordable linear RF and microwave simulator geared towards students, professionals, and hobbyists. What was once only possible on workstations can now be accomplished on your phone or tablet anywhere. Features:

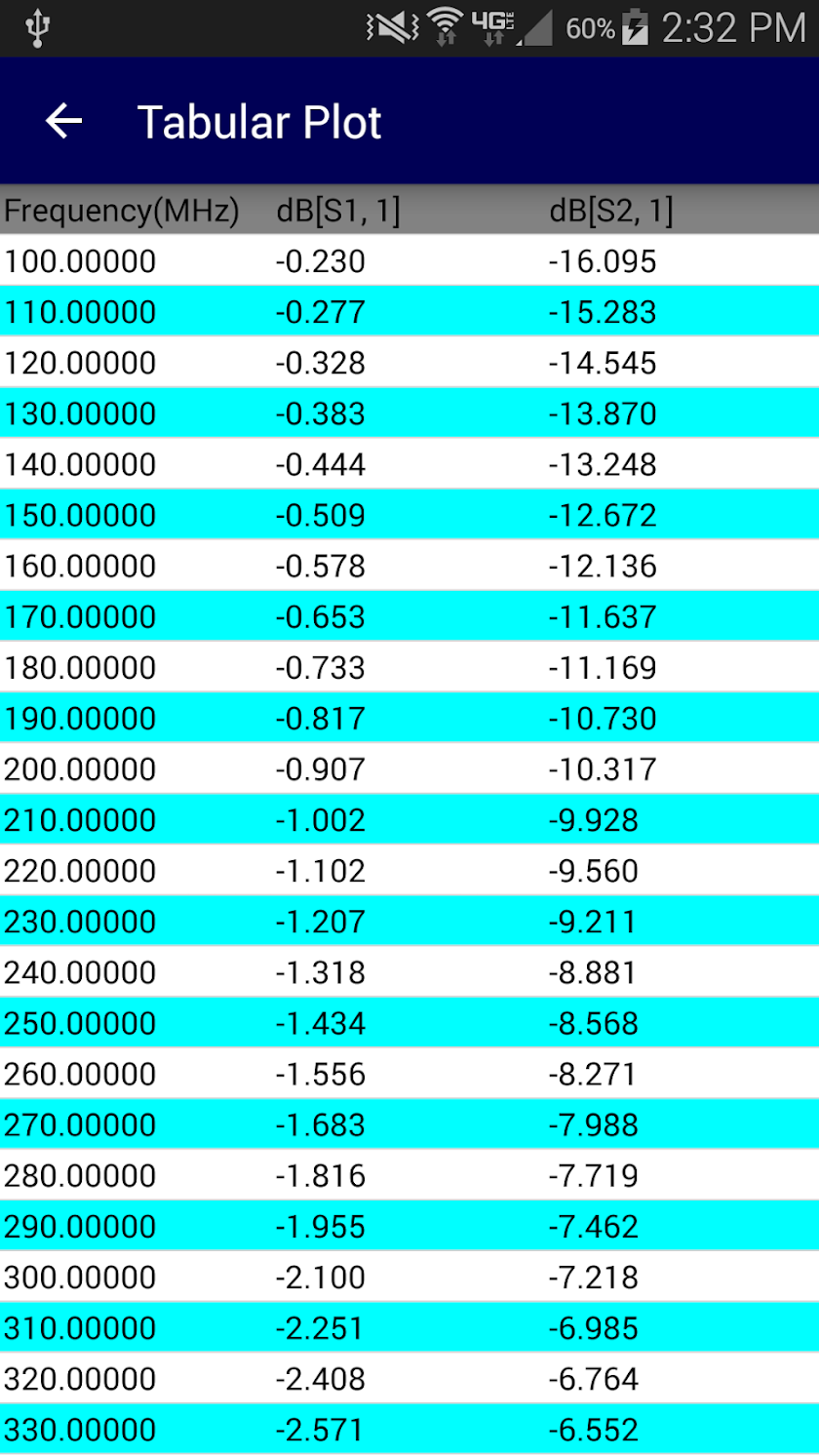

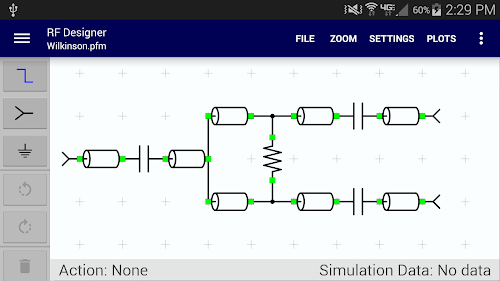

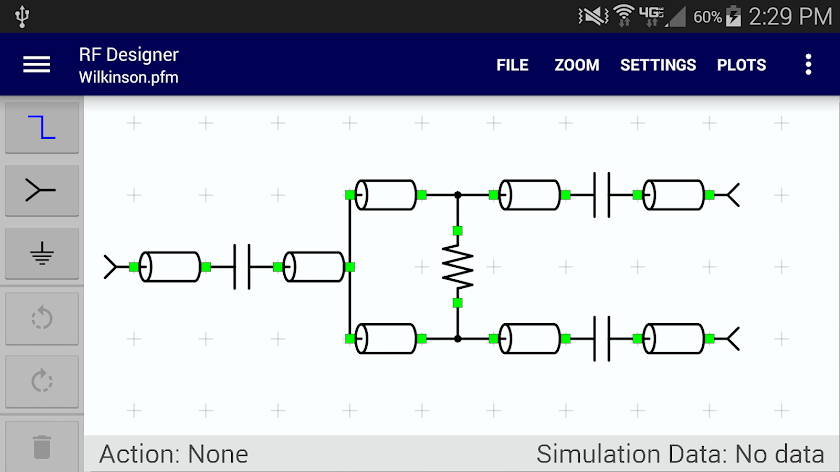

Schematic entryImport 1 through 4 port S-parameter files for use in the schematic.Linear frequency domain analysis of up to 4 ports over user defined frequency range.Export simulated data to S-Parameter files.Plots and graphs: Rectangular, smith chart, and tabular data.Save Smith charts and rectangular graphs to PNG image files.Export tabular and graph trace data to CSV files.
Please check the website at http://www.mmctec.com/ or the YouTube channel at: https://www.youtube.com/channel/UCbcuuD3HI2gQKdYv3hVUZVAfor examples and tutorials
Element models currently provided:
[Lumped Elements]RES - ideal resistorCAP- ideal capacitorIND - ideal inductorSRC - series resistor and capacitorSRL - series resistor and inductorSLC - series inductor and capacitorSRLC - series resistor, inductor, and capacitorPRC - parallel resistor and capacitorPRL - parallel resistor and inductorPLC - parallel inductor and capacitorPRLC - parallel resistor, inductor, and capacitorXFER - ideal transformerIMPED - ideal impedance elementADMIT - ideal admittance elementATTEN - ideal attenuator
[Ideal Transmission Line Elements]TLIN - ideal transmission lineTLOC - ideal open circuit transmission lineTLSC - ideal short circuit transmission lineTLIN4 - ideal 4 node transmission lineCLIN - ideal coupled transmission lines
[Physical Transmission Line Elements]TLINP - physical transmission lineTLPOC - physical open circuit transmission lineTLPSC - physical short circuit transmission lineTLINP4 - physical 4 node transmission lineCLINP - physical coupled transmission lines
[Microstrip Transmission Line Elements]MLIN - microstrip transmission lineMCLIN - symmetric edge coupled microstrip linesMTEE - microstrip tee-junctionMCROS - microstrip cross junctionMBENDO - optimal right angle mitered microstrip bendMBEND - unmitered right angle microstrip bendMBEND2 - 50% mitered right angle microstrip bendMCURVE - radiused microstrip bendMLOC - open-circuited microstrip without end-effectMLSC - short-circuited microstripMLEF - open-circuited microstrip with end effectMSTEP - microstrip abrupt step in widthMGAP - gap in microstrip
[Stripline Transmission Line Elements]SLIN - stripline transmission lineSCLIN - symmetric edge coupled striplinesSLOC - open-circuited stripline without end-effectSLSC - short-circuited striplineSLEF - open-circuited stripline with end effectSSTEP - stripline step in widthSGAP - gap in stripline
[Linear Elements]S1P - 1 port S-parameter data blockS2P - 2 port S-parameter data blockS3P - 3 port S-parameter data blockS4P - 4 port S-parameter data block
[Universal elements]GAIN - linear gain block element with frequency shapingCIRC - ideal circulator elementISOL - ideal isolator elementCPLR - ideal couplerGYR - gyrator
